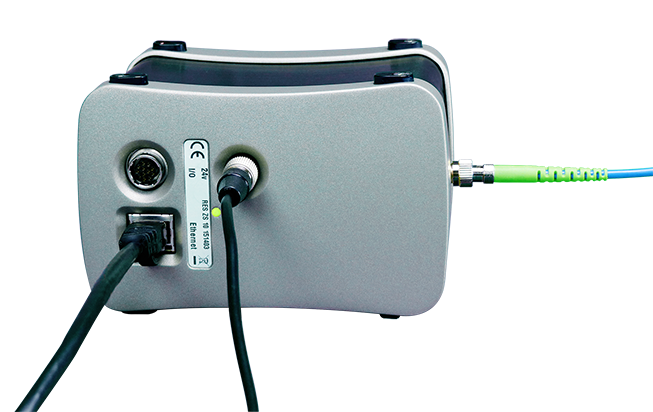

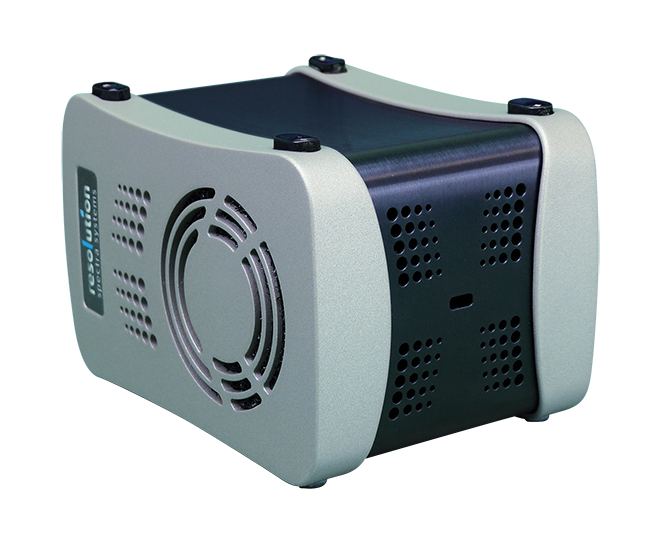

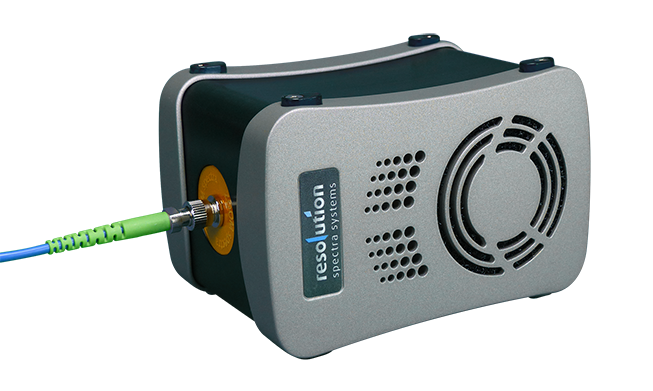

ZOOM SPECTRA

ZOOM SPECTRA

Characteristic

特徴

Key features

  • 3 GHz high spectral resolution
  • Excellent absolute accuracy: 600 MHz
  • Simultaneous bandwidth of a few nm
  • High measurement rate capability: 30 kHz
  • Compact size
  • Robust long-life factory calibration
  • User-friendly SpectraResolver software
  • Trigger

Overview

概要



High-Resolution High-Rate Laser Spectrum Analyzer

ZOOM SPECTRAは数ナノメーターの同時帯域幅(a simultaneous bandwidth)において高いスペクトル分解能を持つ高解分解能・高レート レーザースペクトルアナライザーです。ZOOM SPECTRAはマルチ波長計（ピコメーター精度）とスペクトルアナライザーの両方の機能を備えたＣＷ レーザー及びパルスレーザーの特性測定に最も適したツールと言えます。


詳しい資料はこちらPDF

Specification

仕様

SPECIFICATIONS
Wavelength range 630 – 1100 nm
Optical Spectral Resolution (1)
Max 8 GHz
Typical 6 GHz
Min 3 GHz
Absolute accuracy (2) 1 – 2 pm / 600 MHz
Maximum linewidth of a mode (3) 100 GHz
Best dynamic range 1:200
Wavelength bandwidth one measurement 5 nm (@ 630 nm)14 nm (@ 1100 nm)
Maximum measurement rate 30,000 frame/s
Integration time 320 ns to 500 ms (32 ns step)
Input power range (4) 10 nW – 1 mW
Optical input FC/APC PM singlemode fiber N.A. 0.12
Power consumption 11 W – 450 mA @ 24 VDC
Communication Gigabit Ethernet
Dimensions 12.6 x 8.3 x 9.1 cm
FUNCTIONALITIES with SpectraResolver software
Compatibility Windows 7, 8 & 10
Recording Continuous, multiframe or triggered
Dark measurement Manual and wizard modes
Multi-wavelength meter function Automatic peak(s) detection
Standard graphical utilities Zoom, markers and peak(s) detection over time
Unit change nm / cm-1 / THz
Trigger option TriggerBox and adjustable trigger delay
Software development kit C/C++, DotNet, VIs libraries
(1) Full Width Half Maximum (FWHM) of singlemode unresolved laser (2) T° calibrated on 10-40°C , no recalibration needed (3) For single and multimode lasers (4) Coupled in PM singlemode fiber

Application

アプリケーション

・Continuous and pulsed/triggered lasers (ns/ps lasers) ・Absolute wavelength and spectrum measurement ・Multifrequency lasers ・Mode-hop characterization ・Laser modulation
